XTS 1500 Digital Portable Radio (Discontinued)

XTS 1500 Digital Portable Radio


The XTS®1500 portable radio is no longer manufactured, however accessories and replacement parts may be available.


Assemble your next generation portable radio fleet. Click Here

Contact sales

Share this on

Connect with us on

Back
XTS 1500 Digital Portable Radio (Discontinued)
Product Info
Jump to ...
Back
XTS 1500 Digital Portable Radio (Discontinued)

Features

    Due to the FCC Narrowbanding mandate in the United States, product specifications and brochures for Motorola Solutions two-way radio products may indicate 25 kHz/12.5 kHz analog/digital operation which may not be the standard mode of operation at the time of shipment after Jan. 1st 2013.

    Interoperable voice signaling
    Complies with APCO P16 and P25 standards.

    Rugged design
    Meets military standards 810 C, 810 D and 810 E, for resistance to shocks and extreme weather.

    Customer programming software
    Supports USB and RS-232 functionalities.

    Enhanced audio
    Delivers a clear signal via noise reduction software and audio gain control.

    Compatibility with other two-way models
    Uses same accessories as some XTS, HT, MT or MTS units. Optional bitmap display Model I.5 comes with a screen for icons and text.

Specification Sheet

    XTS 1500

    Updated 2009/01/08 | PDF 125.72KB

Performance Characteristics

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Standard battery chemistry type

    Nickel Cadmium, Nickel Metal Hydride

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Coverage area

    Programming Software allows adjustable power output for varying coverage

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Power

    700/800 MHz: 1–3W; UHF: 1–5W; VHF: 1–5W

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Adjustable power levels

    Yes

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Frequency band

    VHF, UHF, 700 MHz, 800 MHz

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Battery life (based on a 5 5 90 duty cycle)

    8 hours (High capacity NiCD); 10 hours (High capacity NiMH)

Physical Characteristics

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/physical-characteristics Keypad

    None

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/physical-characteristics Display

    Full, Limited

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/physical-characteristics Weight (with standard battery)

    19.85 oz (562.75 g) with NiCD battery, 20.63 oz (584.86 g) with NiMH battery

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/physical-characteristics Dimensions H x W x D (with standard battery)

    10.86 x 2.3 x 1.5 in. (275.84 x 58.42 x 38.10 mm) H x W x D

Radio Features

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Number of channels

    48

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Noise reduction software

    Yes

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Audio Profiles

    Yes

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Noise reduction software

    Yes

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Advanced Software Features

    Over the Air Programming (OTAP)

Technology

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/technology Digital technology

    Yes

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/technology System type

    Conventional, SmartZone trunking, SMARTNET trunking

User Environment

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/user-environment Mil spec

    810 C, 810 D, 810 E, 810 F

Warranty

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/warranty Standard warranty

    1 year

Back
XTS 1500 Digital Portable Radio (Discontinued)
Accessories
Filter

Show only:

list item image

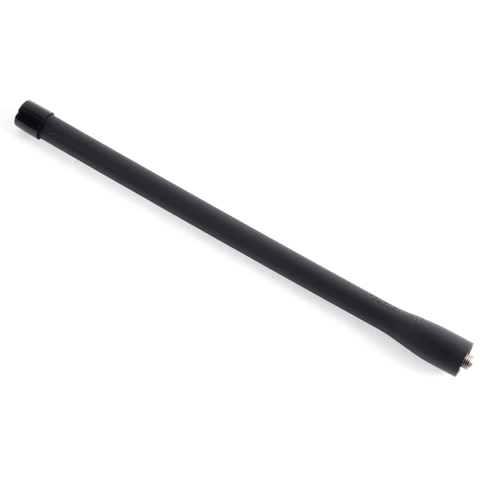

Flexible Whip, 800 mHz Antennas (8505241U03/8505241U04)

Antennas

7-inch 800 MHz, 1/2 wave, flexible whip antennas.

list item image

Body Push-To-Talk (0180300E83)

Accessories

Optional remote push-to-talk body switch for ear microphones.

list item image

NNTN4186A CommPort Ear Mic w/ Body PTT

Accessories

CommPort Ear Microphone with body push-to-talk. Ideal for users wearing bulky gloves or gear.

list item image

Remote Speaker Microphone with Orange Programmable Button (RMN5038)

Audio Accessories

Enable the radio's man down function with the orange programmable button. Designed for XTS Series Radios.

list item image

Temple Transducer (RMN4049)

Audio Accessories

Temple Transducer with in-line push-to-talk and boom microphone. Designed for CP Series Radios.

list item image

A1 Call Box (RRDN4363A)

Call Boxes

Simply mount this aluminum call box to a wall, PVC or an aluminum stanchion.

list item image

A106.5 Call Box (RRDN4589A)

Call Boxes

This sleek 6.5-foot, self-standing call box installs in minutes and is ideal for narrow hallways and other constricted spaces.

list item image

A1410 Call Box (RRDN4370A)

Call Boxes

This 10-foot tall, and self-standing design comes with a low-power consumption LED, which operates as a locator light in dimly lit areas.

list item image

A144 Call Box (RRDN4591A)

Call Boxes

Designed for indoor and outdoor use, this 4-foot tall call box can quickly be installed in hallways of corporate and college campuses.

list item image

RRDN4365A Solar Call Box

Call Boxes

Designed to be installed in soft ground or on hard surface, this sleek, solar-powered call box is ideal for education, medical and corporate campuses.

list item image

Solar A1 Call Box (RRDN4362A)

Call Boxes

Simply mount this aluminum call box to a wall, PVC or an aluminum stanchion.

list item image

Solar A106.5 Call Box (RRDN4588A)

Call Boxes

This sleek 6.5 foot self-standing solar call box, installs in minutes and makes placement in narrow hallways and other constricted spaces virtually effortless.

list item image

Solar A1410 Call Box (RRDN4369A)

Call Boxes

Ideal for high profile corporate campuses, this 10-foot tall, and self-standing design comes with a low-power consumption LED, which operates as a locator light in dimly lit areas.

list item image

Solar A144 Call Box (RRDN4590A)

Call Boxes

Designed for indoor and outdoor use, this 4-foot tall call box can quickly be installed in hallways of corporate and college campuses.

list item image

Leather Belt (4200865599)

Carry Accessories

1.75-inch leather belt is designed for use with carry cases or clips.

list item image

Universal Chest Pack (HLN6602)

Carry Accessories

This Universal Chest Pack holds and protects the radio.

list item image

Leather Carry Cases (NNTN4116/NNTN4115)

Carry Cases

Keep your hands on your daily tasks with these leather carry cases. They feature swivel belt loops and are designed for XTS Series Radios.

list item image

Replacement Wireless Earpiece with 12" cable (NTN2572)

Wireless Accessories

This is a 12-inch replacement earpiece for the Mission Critical and Operations Critical Wireless Pods.
