Features
Allows users to access up to 20 public and 10 private groups.
Digital one-to-many call
Allows other DTR radios on same group ID and channel to communicate.
SMS text messaging
Transmits reception and origination information, as well as time/date stamp.
Lithium ion battery
Gives extra-long battery life—up to 14.5 hours of operation per full charge.
Rugged, compact polycarbonate housing
Offers comfort, with rubber overmold.
Durable design
Meets military 810 C, D, E, and F specifications for shock, vibration, water, dust and temperature extremes.
Full-graphic backlit display
Uses contrast adjustment and backlight timer and provides battery gauge.
Caller ID
Stores recent call list—up to last 10 transmissions.
Unit-to-unit configuration
Simplifies cloning operation, with via optional cable.
Specification Sheet

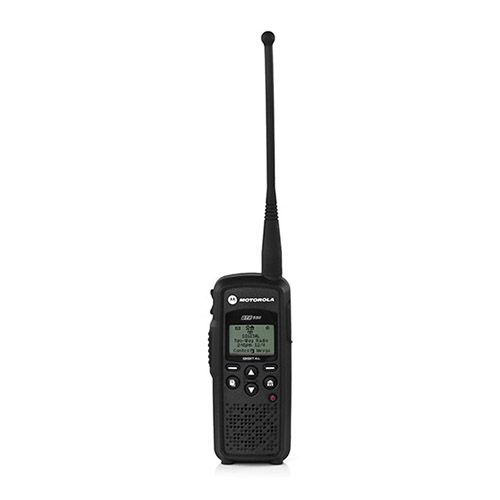

DTR550 Specifications
Product specifications for the DTR550 and DTR650
Performance Characteristics
-
Estimated battery life
Up to 14.5 hours (based on 5/5/90 duty cycle)
-
Coverage area
Up to 350,000 square feet (30 floors) with long whip antenna
-
Power
On-site digital
-
Frequency band
900 MHz ISM License Free
Physical Characteristics
-
Keypad
None
-
Weight (with standard battery)
7.6 oz. (215.5 g)
-
Dimensions H x W x D (with standard battery)
5.2 x 2.3 x 1.4 in. (132.3 x 57.2 x 35.4 mm) H x W x D
-
Emergency button
None
-
Display
Full
Radio Features
-
Number of channels
Up to 150 contacts (Maximum 20 public groups / 10 private groups)
-
Front panel programmable
Yes
-
Cloning
With cable
-
VibraCall
Yes
Technology
-
Digital technology
Yes
User Environment
-
FCC license-free
Yes
-
Mil spec
810 C, 810 D, 810 E, 810 F
Warranty
-
Standard package
Swivel belt holster, 3-hr charger, drop in charging tray, standard capacity Li-Ion battery, 1/4 wave stubby antenna, quick reference cards, tri-lingual user's guide (CD)
-
Standard warranty
2 years
